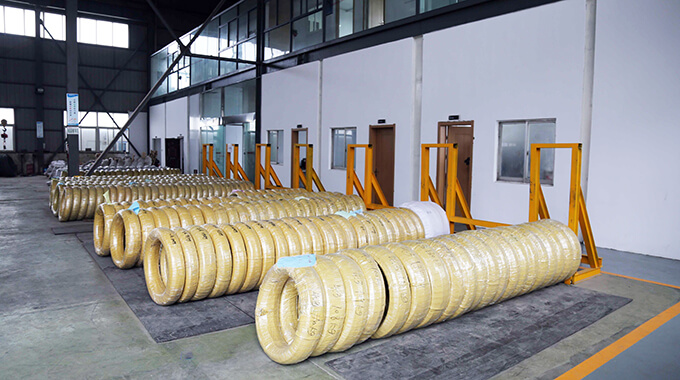

SWRM20 Cold heading steel wire

MATERIALSENGINEERINGCREATION GROUP

Products / JIS Standard / JIS G3505

SWRM20 Cold heading steel wire

Diameter of wire: 0.40-46mm

Tensile Strength: Please refer to the technical information page

Product Detail Technical Information Inspection Packaging

Shanghai Creation GroupIs China. It is a benchmark company that has 20 years of experience in an enterprise that focuses on cold heading quality steel wires in the entire management team. We have a good relationship with many tier one suppliers in the automotive industry and all the wire wire is supplied by brand steel mills. All orders are 100% traceable.

Technical delivery conditions

Surface Quality

- : Continuous, smooth

- : No stitches, no overlap, potholes, scratches, no extension marks

- : No rust

Applied Industry

- : Automotive Industry

- : Construction

- : Machinery & Equipment Industry

- : Other Industries

Case Study

Products & Service

Wire rod

Pickling and phosphating

Cold drawing

Spheroidizing annealing

Inspection

Finished products

1. Chemical composition

Table 1-Chemical ingredients, units %

Steel grade a)	C	Mn	P	S
SWRM6	<0.08	<0.06	<0.040	<0.040
SWRM8	<0.10	<0.06	<0.040	<0.040
SWRM10	0.08-0.13	0.30-0.60	<0.040	<0.040
SWRM12	0.10-0.15	0.30-0.60	<0.040	<0.040
SWRM15	0.13-0.18	0.30-0.60	<0.040	<0.040
SWRM17	0.15-0.20	0.30-0.60	<0.040	<0.040
SWRM20	0.18-0.23	0.30-0.60	<0.040	<0.040
SWRM22	0.20-0.25	0.30-0.60	<0.040	<0.040

Elements other than the table should not be intentionally added except for the purpose of finishing the molten steel. However, B may be added depending on the agreement between the receiving parties. In that case, JA.3. a) In the case of the quild steel designation, K is appended to the end of the type symbol. Example SWRM10K b) By agreement between the receiving parties, JA.2.

2. Diameter of wire wire and its tolerance and differential deviation

Table 2-Standard Diameter

5.5

6.4

9.5

Table 3-Tolerance and Difference

Diameter	Tolerance	Out-of-roundness a)
≤ 15	±0.40	≤ 0.64
Over 15 up to and including 25	±0.50	≤ 0.80

If the diameter exceeds 25mm, it is due to the agreement between the receiving parties. (a) The deviation difference refers to the difference between the maximum value and the minimum value of the diameter in the same cross section of the wire.
